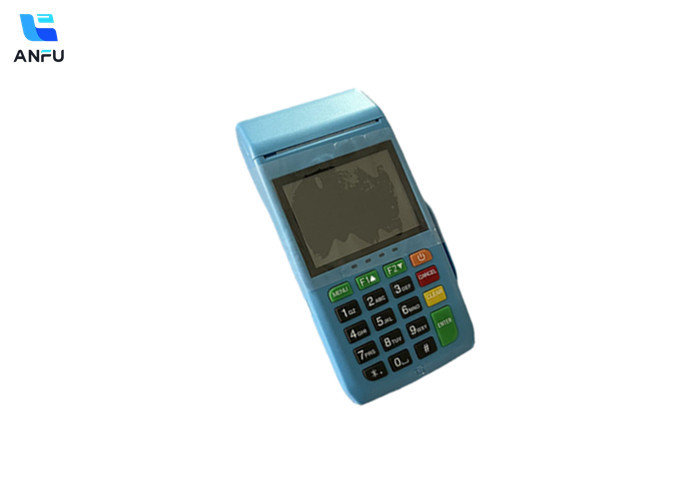

Smart Portable Linux pos Terminal manufacturer handheld printer point of sale pos system
Company Information
I want to introduce you to an incredible company called Shenzhou Anfu. If you're interested in cutting-edge security technology, you're going to find this fascinating!
About Shenzhou Anfu
Shenzhou Anfu is a high-tech company based in Beijing. They specialize in the design, development, and sales of advanced security System on Chip (SOC) solutions and security terminal products. Their work is crucial in ensuring the safety and security of various digital interactions and devices.
What They Do
1. SOC Chips and Modules:
- They develop SOC chips using a 32-bit embedded high-performance CPU design platform. These chips are the backbone of many high-security applications.
2. Security Terminal Products:
- Their security terminal products are designed to protect sensitive data and ensure secure transactions, making them vital for industries like finance and smart home technology.
Why They’re Special
Shenzhou Anfu isn't just any tech company. They have earned several prestigious certifications that reflect their commitment to quality and innovation:
- National High-Tech Enterprise Certification
- UnionPay Card Acceptance Terminal Product Enterprise Certification
- Software Enterprise Certification
- ISO 9001:2015 Quality Management System Certification
- Authorization from the State Password Administration for commercial password products
These certifications are a testament to their expertise and dedication to excellence.
Innovation and Intellectual Property
Shenzhou Anfu has a strong focus on research and development. They hold 14 independent intellectual property rights, including:
- 2 Invention Patents
- 5 Utility Model Patents
- 4 Design Patents
- 9 Software Copyrights
Their continuous investment in R&D has led to the creation of the AX200 chip series and various industry-specific security solutions.
Applications of Their Technology
Their products are used in many fields, such as:
- Intelligent Terminals: Enhancing the security and functionality of smart devices.
- Security Protection Products: Providing advanced security measures for various applications.
- Smart Home Devices and Smart Locks: Ensuring that your home and personal devices are secure.
- Financial Payment Solutions: Making sure that financial transactions are safe from fraud and breaches.
- Specialized Information Encryption Products: Protecting sensitive information with high-level encryption.
Global Presence and Impact
Shenzhou Anfu’s solutions are not just limited to China; they have a global footprint. They serve various sectors, including security, banking and finance, e-government, and convenience services. Their innovative and reliable products have made them a trusted name worldwide.
Specification
| Operating System | Linux 5.4
RTOS |
| Processor | Linux:Cortex-A7 1.2 GHz
RTOS:Cortex-A5 500MHz
High performance 32-bit security CPU |
| Memory | Linux:256MB Flash + 128MB RAM
RTOS:8MB Flash + 16MB RAM |
| Card Readers | MSR: ISO7810-7813, 3 tracks
IC Card: ISO7816 |
| NFC Reader | 13.56MHz, ISO/IEC14443 TypeA&B, |
| Camera | Rear camera:0.3 million pixels |
| Display | 2.8" 320x240 TFT
Resistive Touch Screen |
| Wireless Communication | Linux:Wi-Fi® (2.4G) (optional)| 4G(Cat-4) | 3G (WCDMA) | 2G(GPRS)
RTOS:Wi-Fi® (2.4G)(optional) | 4G(Cat-1) | 2G(GPRS) |
| Battery | emovable Lithium polymer
battery, 3.7V/2500mAh | 3.7V/3200mAh (optional) |
| Printer | High speed thermal printing, printing lifeis not less than 50km
The specification is 58mm in width and 40mm in diameter |
Card Slots
SIM / SAM | SIM Card x 2 + PSAM X 1 |
| Positioning | X |
| Keypad | Numeric x 10
Function x 8
Power x 1 |
| Audio | 1 Buzzer |
| Ports | Linux:1 Type-C USB OTG | USB 2.0
RTOS:11 Type-C | USB 2.0 |
| Indicator lights | 4 Work indicator lights |
| Adapter | Input: AC 100-240V, 50/60Hz
Output: 5V/1A |
| Scanning charging base | X |
| Weight | 340g |
| Physical size | 177mm*81mm*56mm |
| Environment | Storage temperature: -20°C to 60°C
Operating temperature: -10°C to 50°C
Humidity: ≤95% |
| Certifications | EMV Contact L1/EMV Contact L2/EMV Contactless L1 / Visa payWave /Mastercard Paypass
PCI PTS 6.x / TQM / CE |
| Display | 2.8"(320 x 240)TFT, resistive touch screen |
| WlFl(optional) | 802.11 a/b/g/n,2.4G |
| Mobile communication | Linux:4G CAT4,WCDMA,GSM
RTOS:4G CAT1,GSM
South American Version
FDD-LTE:B2/B3/B4/B5/B7/B8/B28-A/B28-B;
TDD-LTE:B40
GSM:B2/B3/B5/B8
European Version
FDD-LTE:B1/B3/B5/B7/B8/B20;
TDD-LTE:B38/B40/B41
GSM:B3/B8 |
| Contact lC card | Comply with lS0 7816 and China financial
integrated circuit (lC) card specification;
The card holder can be used for more than300000 times |
| Magnetic stripe card | Support three track data reading;
It supports two-way card swiping.
The swipingspeed ranges from 10 cm /s to 100 cm /s.
The service life of the magnetic stripe reader canreach more than 400000 times;
It conforms to iso78ll and iso7812 standards |
| RTC | Built in RTC to save the clock; Buttonbattery life > 5 years |
Real Case for Lower MOQ:
| Products Name | MOQ(in the last 12month) |
| POS Device | 5 Pieces |
The competitive advantage of product line:
Shenzhou Anfu has obtained 14 independent intellectual property rights, including 2 invention patents, 5 utility model patents, 4 appearance new patents and 9 software copyrights. In terms of product research and development, the company has always adhered to the road of independent research and development. The company has invested a large amount of funds each year in product R&D and design, realized serialized mass production of AX200 chip products, and launched safety in multiple industries based on this solution.
Certificate
FAQ
1. Q: How can I get the touch pos terminal sample to check quality?
After price comfirmation, you can order pos samples to check quality.
Contact:whatsapp +86 18011965815
2. Q. How can we promise you the quality ?
Each of our products will be FULL tested and Inspected before it shipped,
3. Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
4. Q: Who will pay the postage of the returns?
A: Within the warranty, returning postage happening in China will be free of charge. (Returns happening outside China mainland excluded.)
5. Q:What is your warranty?
We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
